Entra ID WatchTower Forensics

The Real Problem with Entra ID Logs

If you've been working with Entra ID logs, you know it's not the easiest thing to deal with. You open the Azure Portal or Entra portal, select a user, and list their sign-in activities. But you quickly discover it's painfully slow and getting simple answers is frustrating - like how many locations did they use, what's the time gap between different locations, how many devices, etc.

Sign-in logs are split into two groups: interactive and non-interactive. Interactive logs are manageable because the count stays low. Non-interactive logs are a different story - the volume is massive and analyzing them manually becomes nearly impossible.

When you get that urgent call and someone says "I need this data and that analysis," the Entra portal becomes your worst enemy. You might also be in an environment with no SIEM or Sentinel at all. Your only real option? Graph API to extract the sign-in data directly.

                        Portal Reality Check:
                        Slow Performance: Portal crawls to a halt with large datasets
No Quick Answers: Simple questions like "how many devices?" require tedious manual counting
Data Correlation Hell: Interactive and non-interactive logs exist in separate silos
No SIEM Available: Many environments lack Sentinel or other SIEM tools
Export Nightmare: Portal exports are basic CSV files that need hours of manual processing



When Legal Calls: "We need all sign-in activity for user X between these dates, including device information, locations, and impossible travel analysis." Good luck doing that manually through the portal - you'll be there for days.

WatchTower forensic analysis dashboard showing structured data extraction

This is what you get instead: structured forensic data analysis from Graph API extraction

Graph API Data Extraction Approach

                        Technology Stack: PowerShell automation + Microsoft Graph API + Structured CSV analysis + Excel reporting


Direct Graph API Integration

PowerShell automation connects directly to Microsoft Graph API auditLogs/signIns endpoint to extract comprehensive sign-in data. Retrieves both interactive and non-interactive authentication events with full metadata preservation.

Multi-Dimensional Data Processing

Single data extraction generates 11 specialized CSV files analyzing the same sign-in events from different perspectives: timeline, geographic, device, application, and behavioral analysis.

Forensic Data Structure

Maintains original timestamps, correlation IDs, and metadata for audit trail preservation. Structured outputs support database import, Excel analysis, and legal discovery requirements.

What Exactly You Get Out

Instead of clicking around the portal for hours, you run one PowerShell command and get structured data exported into multiple CSV files. Each CSV file analyzes the same sign-in data from different angles:

11 Specialized CSV Files

                        Complete CSV Output Package:
                        Timeline.csv - Chronological events with timestamps and correlation IDs
Devices.csv - Device compliance, OS, browsers, usage patterns
IPAddresses.csv - IP behavioral analysis, success rates, geographic correlation
Locations.csv - Geographic access patterns with coordinates
Applications.csv - Application access patterns and correlation analysis
Browsers.csv - Browser usage and security analysis
CountryAnalysis.csv - Country-level access patterns and anomalies
LocationTransitions.csv - Travel patterns and impossible travel detection
HourlyPatterns.csv - 24-hour activity heatmap data
DailyPatterns.csv - Weekly activity patterns
BusinessHours.csv - Work vs after-hours analysis



All 11 CSV files generated from single Graph API extraction

JSON Data Preservation

Raw Graph API responses preserved in JSON format for audit trails. Three JSON files: raw logs, processed analysis, and full correlation data.

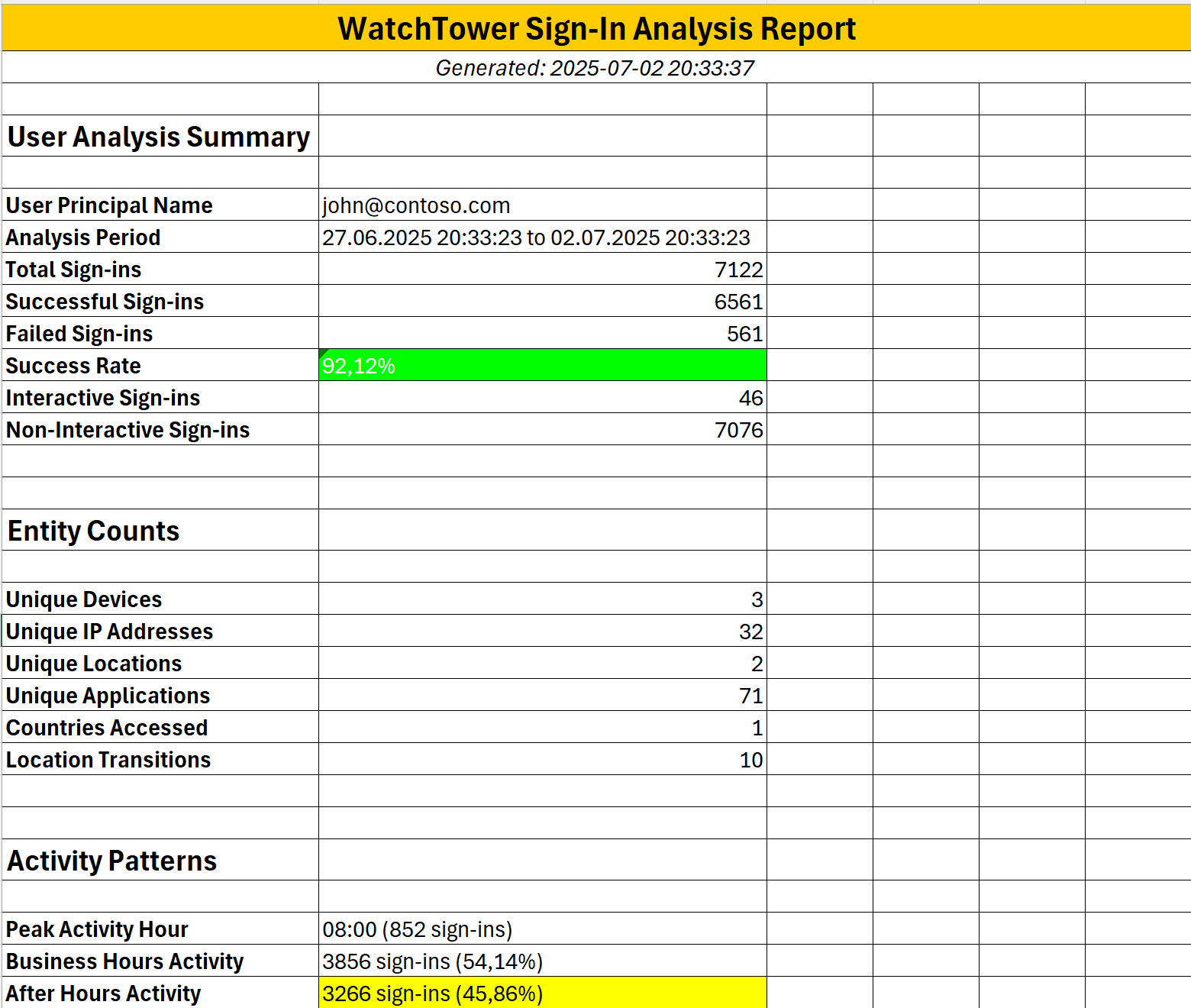

Combined Excel Dashboard

All CSV data combined into one Excel file with charts, risk analysis summaries, and executive dashboard. Visual presentation suitable for legal discovery and compliance reporting.

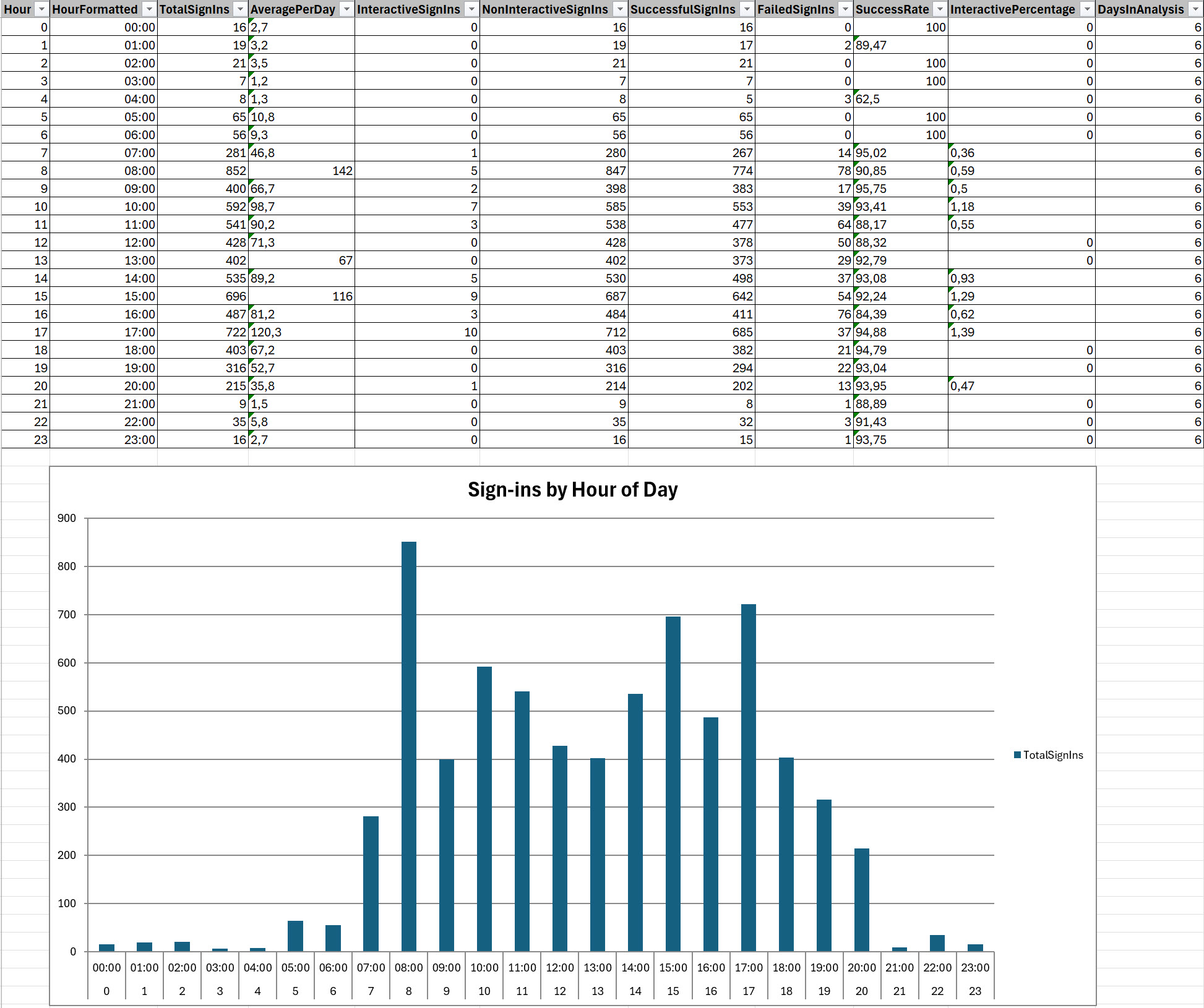

Excel dashboard with visual charts for executive reporting

PowerShell Automation

Production-ready PowerShell scripts that handle Graph API authentication, pagination, error management, and data processing. Just run the script and get your forensic data.

CSV timeline analysis with correlation tracking and timeline reconstruction

Prerequisites and Complexity

                        Required Environment:
                        Entra ID tenant with sign-in log retention
Graph API permissions (AuditLog.Read.All, Directory.Read.All)
PowerShell 7.x with Microsoft Graph PowerShell SDK
Global Reader or Security Reader role minimum



                        Skills Required: PowerShell scripting experience, Microsoft Graph API understanding, Azure app registration knowledge, and CSV data analysis capabilities. Time estimate: 2-4 hours for initial setup depending on environment complexity.


Business Applications: Security incident response with detailed timelines. Legal discovery requests requiring structured user activity data. Compliance audits needing quantified access patterns. Risk assessments without dedicated forensic tool investments.
